- Ergonomisk betjeningsenhet som kan betjenes med begge hender
- Optimalisert hydraulikk gir enkel håndtering
- Lang levetid med robuste materialer og solid utførelse
- Vedlikeholdsfri med smørefrie ledd
- Spesiell senkeventil senker lasten fintfølende
AM 22 SH / 22 NH
De robuste og pålitelige jekketrallene AM 22 er klassikerne fra Jungheinrich og egner seg svært godt til transport av last over korte strekninger. De er enkle å manøvrere med en ergonomisk betjeningsenhet. Den optimalt tilpassede hydraulikken kombinert med tette fôringer på hjul og kraftige hjuloppheng, gjør det enkelt å flytte lasten uten store anstrengelser. Slik oppnår du optimal ergonomi og sikkerhet. Jekketrallene er alltid klare til bruk, takket være smørefrie ledd og vedlikeholdsfri pumpehydraulikk med spesiell senkeventil. Det kraftige stålet og det sveisede ledehendelfestet sørger i tillegg for at AM 22 er svært slitesterk. Sikker og enkel transport av varer i alle situasjoner.
Fordeler
Jekketrallene AM 22 er robuste og pålitelige klassikere fra Jungheinrich og egner seg svært godt til transport av last over korte strekninger.
Features

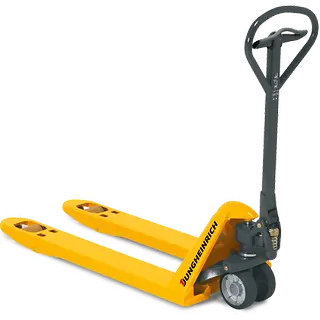

![AM22_[MAM-10245].webp](https://media-live2.prod.scw.jungheinrichcloud.com/resource/image/1499588/portrait_ratio1x1/320/320/e3c53e05ef2e8cf1f69b9913da50aa05/F9586931B78B0355EFDDF79B61D35734/am22-mam-10245-webp.webp)
Modelloversikt
| Model | Løftekapasitet | Maksimal løftehøyde | Kjørehastighet | Total lengde |
| AM 22, 520x600, N-GN, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, N-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 520x902, N-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 520x950, N-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 520x1054, N-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 520x1150, N-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x1207, N-GN, NH | 2 200 kg | 122 mm | - | 1 523 mm |
| AM 22, 520x600, C-GN, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, C-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 520x902, C-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 520x950, C-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 520x1054, C-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 520x1150, C-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x1207, C-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x600, C-GV, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, C-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 165 mm |
| AM 22, 520x902, C-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 520x950, C-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 320 mm |
| AM 22, 520x1054, C-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 424 mm |
| AM 22, 520x1150, C-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 520 mm |
| AM 22, 520x1207, C-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 577 mm |
| AM 22, 520x600, V-GV, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, V-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 520x902, V-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 520x950, V-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 520x1054, V-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 520x1150, V-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x1207, V-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x600, N-BN, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, N-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 520x902, N-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 520x950, N-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 520x1054, N-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 520x1150, N-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x1207, N-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x600, C-BN, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, C-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 520x902, C-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 520x950, C-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 520x1054, C-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 520x1150, C-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 520 mm |
| AM 22, 520x1207, C-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x600, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 520x902, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 520x950, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 520x1054, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 520x1150, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x1207, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x1360, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 733 mm |
| AM 22, 520x1600, C-BV, NH | 1 500 kg | 122 mm | 0 km/t | 1 973 mm |
| AM 22, 520x1900, C-BV, NH | 1 000 kg | 122 mm | 0 km/t | 2 273 mm |
| AM 22, 520x2400, C-BV, NH | 500 kg | 122 mm | 0 km/t | 2 773 mm |
| AM 22, 520x600, V-BV, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, V-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 520x902, V-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 520x950, V-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 520x1054, V-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 520x1150, V-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x1207, V-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, N-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x600, N-GN, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, N-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 680x902, N-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 680x950, N-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, N-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 680x1150, N-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x600, C-GN, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, C-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x902, C-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 680x950, C-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, C-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 680x1150, C-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, C-GN, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x600, C-GV, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, C-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 680x902, C-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 680x950, C-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, C-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 680x1150, C-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, C-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x600, V-GV, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, V-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 680x902, V-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 680x950, V-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, V-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 680x1150, V-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, V-GV, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x600, N-BN, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, N-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 680x902, N-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 680x950, N-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, N-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 680x1150, N-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, N-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x600, C-BN, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, C-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 680x902, C-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 680x950, C-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, C-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 680x1150, C-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, C-BN, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x600, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x902, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 680x950, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 680x1150, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1360, C-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 733 mm |
| AM 22, 680x1600, C-BV, NH | 1 700 kg | 122 mm | 0 km/t | 1 973 mm |
| AM 22, 680x1900, C-BV, NH | 1 200 kg | 122 mm | 0 km/t | 2 773 mm |
| AM 22, 680x600, V-BV, NH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, V-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 680x902, V-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 680x950, V-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, V-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 680x1150, V-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, V-BV, NH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x600, N-GN, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, N-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 520x902, N-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 520x950, N-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 520x1054, N-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 520x1150, N-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x1207, N-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x600, C-GN, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, C-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 520x902, C-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 520x950, C-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 520x1054, C-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 520x1150, C-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x1207, C-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x600, C-GV, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, C-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 520x902, C-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 520x950, C-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 520x1054, C-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 520x1150, C-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x1207, C-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x600, V-GV, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, V-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 520x902, V-GV, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x950, V-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 520x1054, V-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 520x1150, V-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x1207, V-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x600, N-BN, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, N-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 520x902, N-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 520x950, N-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 520x1054, N-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 520x1150, N-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x1207, N-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x600, C-BN, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, C-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 520x902, C-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 520x950, C-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 520x1054, C-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 520x1150, C-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 520 mm |
| AM 22, 520x1207, C-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x600, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 520x902, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 520x950, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 520x1054, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 520x1150, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x1207, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x1360, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 733 mm |
| AM 22, 520x1600, C-BV, SH | 1 500 kg | 122 mm | 0 km/t | 1 973 mm |
| AM 22, 520x1900, C-BV, SH | 1 000 kg | 122 mm | 0 km/t | 2 273 mm |
| AM 22, 520x2400, C-BV, SH | 500 kg | 122 mm | 0 km/t | 2 773 mm |
| AM 22, 520x600, V-BV, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 520x795, V-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 520x902, V-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 520x950, V-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 520x1054, V-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 520x1150, V-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 520x1207, V-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x600, N-GN, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, N-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 680x902, N-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 680x950, N-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, N-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 680x1150, N-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, N-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x600, C-GN, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, C-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 680x902, C-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 680x950, C-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, C-GN, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x1150, C-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, C-GN, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x600, C-GV, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, C-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 680x902, C-GV, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x950, C-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, C-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 680x1150, C-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, C-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x600, V-GV, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, V-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 680x902, V-GV, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x950, V-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, V-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 680x1150, V-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, V-GV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x600, N-BN, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, N-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 680x902, N-BN, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x950, N-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, N-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 680x1150, N-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, N-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x600, C-BN, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, C-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 680x902, C-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 680x950, C-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, C-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 680x1150, C-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, C-BN, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x600, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 680x902, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 680x950, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 680x1150, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1360, C-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 733 mm |
| AM 22, 680x1600, C-BV, SH | 1 700 kg | 122 mm | 0 km/t | 1 973 mm |
| AM 22, 680x1900, C-BV, SH | 1 200 kg | 122 mm | 0 km/t | 2 273 mm |
| AM 22, 680x600, V-BV, SH | 2 200 kg | 122 mm | 0 km/t | 973 mm |
| AM 22, 680x795, V-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 168 mm |
| AM 22, 680x902, V-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 275 mm |
| AM 22, 680x950, V-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 323 mm |
| AM 22, 680x1054, V-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 427 mm |
| AM 22, 680x1150, V-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
| AM 22, 680x1207, V-BV, SH | 2 200 kg | 122 mm | 0 km/t | 1 523 mm |
